FCB-MA130は、“Exmor”CMOSイメージセンサーとソニーの独自ISP、専用レンズを高密度実装技術により小型サイズで実現した、産業用途向けカラーカメラモジュールです。
イメージスタビライザー（手ブレ補正）、顔検出、ATR、逆光補正など多彩な機能を内蔵し、動画はFull HD、静止画は13メガピクセルまでの画像出力に対応しています。
高精細、高機能でコンパクトな筺体により、幅広いアプリケーションでお使いいただけます。
|
主な特長
|
| ■ |
1/2.45型“Exmor”CMOS（有効画素数：約1319万画素） |
| ■ |
出力画素数（H）×（V）：
| 動画： |
1920 × 1080 (FHD), 1600 × 1200 (UXGA),
1280 × 960 (SXGA), 1280 × 720 (HD),
1024 × 768 (XGA), 800 × 480 (WVGA),
640 × 480 (VGA) ; 30fps/25fps *1 |
| 静止画： |
4192 × 3104, 4128 × 3096 (13M),
3264 × 2448 (8M), 2592 × 1944 (5M),
1920 × 1080 (FHD), 1280 × 960 (SXGA),
1280 × 720 (HD), 640 × 480 (VGA) |
|
| ■ |
映像出力
| CMOS： |
CMOS Clock 81 MHz, Parallel 16 bit (Y/Cb/Cr 4:2:2 / SAV, EAV) / Sync Signal (HD, VD) |
| MIPI： |
MIPI D-PHY Clock 324 MHz, Data 2lane CSI-2 (YCbCr 4:2:2) |
|
| ■ |
AF対応単焦点レンズ f=5.3 mm、F2.8（固定） |
| ■ |
デジタルズーム機能（16倍） |
| ■ |
小型：16.5（W）× 10.3（H）× 18.0（D） mm |
| ■ |
軽量：約2.2 g |
| ■ |
ATR機能 (Adaptive Tone Reproduction) |
| ■ |
顔検出機能 |
| ■ |
イメージスタビライザー機能 |
| ■ |
逆光補正機能 |
| ■ |
AE機能 （自動露光モード） |
| ■ |
内部同期 |
| ■ |
I2C |
| *1 ITU-R BT.1120には準拠していません。 |

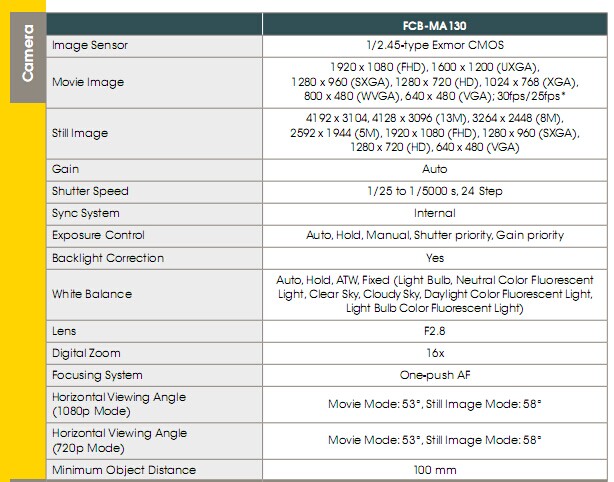

FCB-MA130 Micro Colour Camera Block
Sony is expanding its popular FCB Block Camera Series with the introduction of an ultra-compact, all-in-one color camera – the FCB-MA130 – which supports both moving pictures and still images.
With its modest dimensions, the FCB-MA130 contributes to reducing the size of finished products, and this can be useful in wide range of applications.
Features
Incorporating a 1/2.45-type Exmor™ CMOS sensor and Sony’s original image signal processor, this new camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images.
The FCB-MA130 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony’s original image signal processor.
Outstanding compactness coupled with high-quality images – with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
KEY FEATURES
Compact Size
The FCB-MA130 is extremely compact, measuring just 16.5 x 10.3 x 18.0 mm (21/32 x 13/32 x 23/32 inches), and can be easily integrated into space-restricted products.
Supports Still Images and Video
The FCB-MA130 supports high-quality images.
It achieves Full HD (1080p/30) quality moving pictures and 13-megapixel still images in a single unit.
Superb Picture Quality
Thanks to Sony’s renowned high-quality Exmor image sensor and Sony’s original image signal processor, the FCB-MA130 delivers superb picture quality in both still
images and moving pictures.
In addition to these technologies, picture quality is optimized by precise adjustment previously developed by Sony during production of mobile phone camera
modules.
Auto Focus
This camera offers a one-push auto focus (AF) function for ease of use.
Sony’s Original Image Processor
Many useful features are achieved thanks to Sony’s original image processor:
• Image Stabilizer
• Face Detection
• Wide Dynamic Range (ATR)
• Noise Reduction (3DNR)
• 16x Digital Zoom
